NA Series: Standard Cylinders

Conforming the ASAE Standard, Nordon manufactures and stocks standard cylinders on site. These cylinders are designed and manufactured to survive harsh conditions and retain a longer cycle life. Built for performance and durability, the large range of standards available ensures clients the most cost effective options.

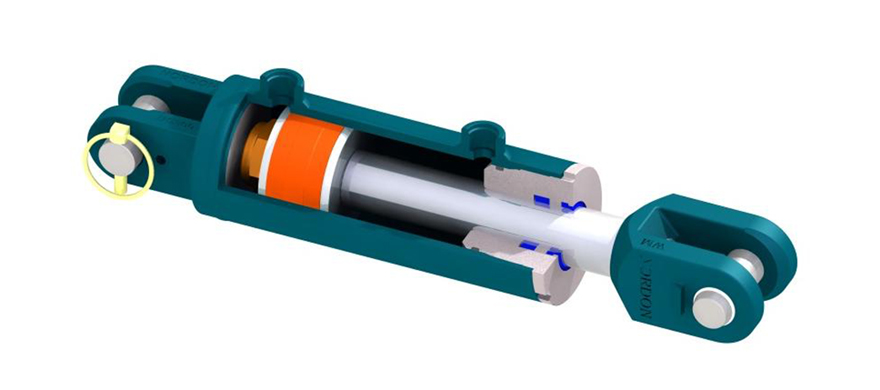

OverviewNordon NA Cylinder

Bore: 1.5" to 5" (in 1/2" increments)

Stroke: 4" to 48"

Pressure: 200 bar

Speed: 0.25 mtr per sec

Gland: Internal thread

Mounts: Female and Male (both ends)



Specifications and Dimensional Data

Closed Center

1.5" (184mm + Stroke)

2" (241mm + Stroke)

2" to 5" (311mm + Stroke)

NA Bore Diameter and Yield Table

NA Part Numbering Systems Reference Sheet



Schematic Drawings

Drawings and the information they contain remain the property of of Nordon Hydraulics Pty Ltd and may not be used for any purpose without written authorisation from the Company.

1.5" bore; 0.75" Rod Cylinder : A port position

2" bore; 1: Rod Cylinder: A port position

2" bore; 1.25" Rod Cylinder: A port position

2.5" bore; 1.25" Rod Cylinder: A port position

2.5" bore; 1.5" Rod Cylinder: A port position

3" bore; 1.5: Rod Cylinder: A port position

3.5" bore; 1.75" Rod Cylinder: A port position

4" bore;  2" Rod Cylinder: A port position

5" bore;  2.25" Rod Cylinder: A port position
