NI Series: Industrial Cylinders

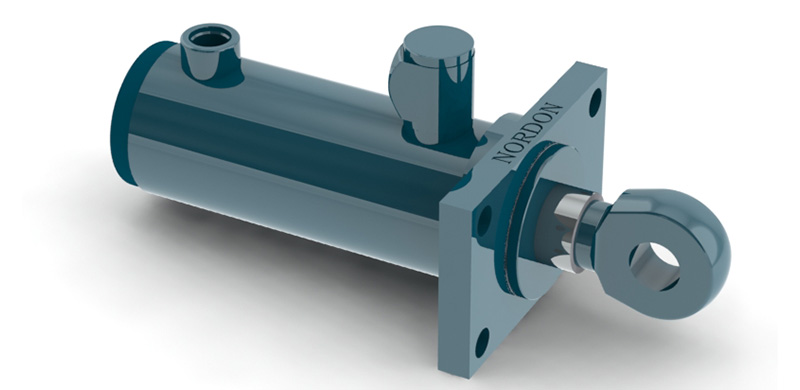

Nordon provides the industry leading NI Industrial range of cylinders - the first and still the only roundline cylinder manufactured in Australia. This range is the only industrial cylinder product that offers a complete range of standard mounting and accessories to provide clients with limitless range options. Featuring high 350 grade steel castings and machined steel mountings which are held in stock, the NI range offers designers a standard product to incorporate within their designs.



OverviewNordon NI Cylinder

Bore: 1.5" to 8" (in 1/2" increments)

Stroke: 10mm to 6000mm

Working Pressure: 200 bar

Maximum Pressure: 300 bar

Speed: 0.25 mtr per sec

Safety Yeild: 3:1 at 200 bar

Gland: Internal thread

Mounts: Female clevis, pin eye, sphereical bearing, male lug, trunion, NFPA style rectangular flange



Dimensional Data

NI Part Numbering System Reference Sheet





Secifications and Drawings

Drawings and the information they contain remain the property of of Nordon Hydraulics Pty Ltd and may not be used for any purpose without written authorisation from the Company.

NI Series Catalogue 2010

1.5" bore; 0.75" or 1" Rod Cylinder

2" bore; 1" or 1.25" Rod Cylinder

2.5" bore; 1.25 or 1.5" Rod Cylinder

3" bore; 1.5" or 1.75" Rod Cylinder

3.5" bore; 1.75" or 2" Rod Cylinder

4" bore; 2" or 2.25" Rod Cylinder

4.5" bore; 2" or 2.25" Rod Cylinder

5" bore;2.25" or 2.5" Rod Cylinder

6" bore; 3" or 3.5" Rod Cylinder

7" bore; 3.5" Rod Cylinder

8" bore; 4" Rod Cylinder
