NU Series Cylinders
Overview
- Bore from 1.5” to 4”
- Stroke from 2” to 48”
- Rod Diameter from 0.75” to 2”
- Closed Centre from 233 to 1530mm
Brochure
| Attachment | Size |
|---|---|
| 1.15 MB |
Technical
| Attachment | Size |
|---|---|
| 920.62 KB |

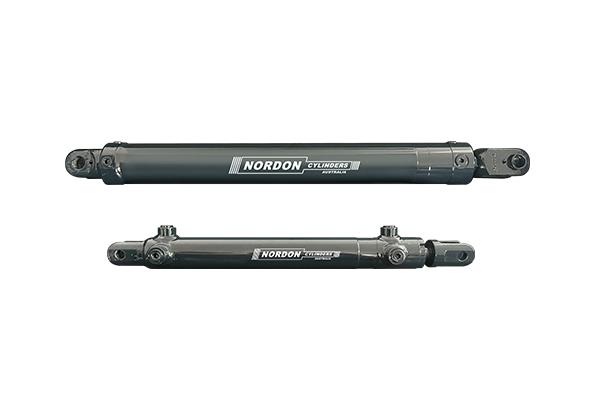

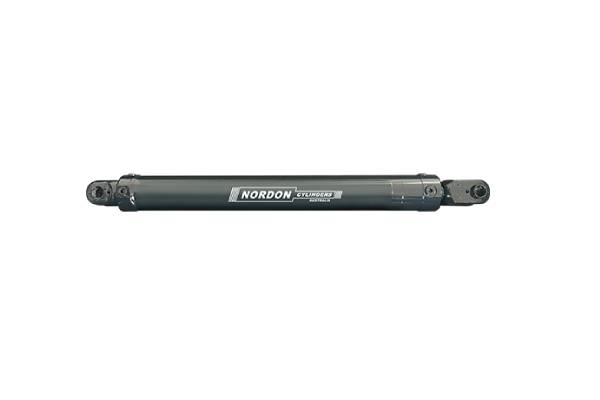

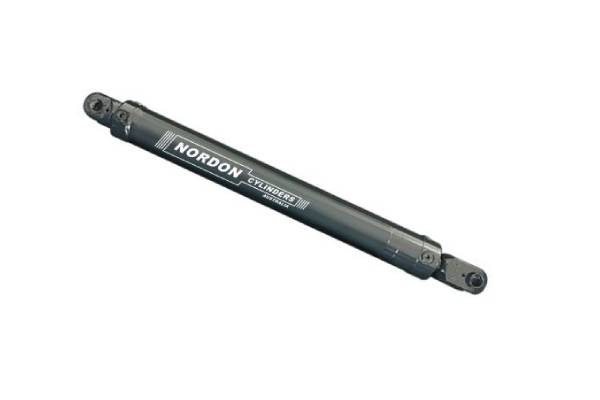

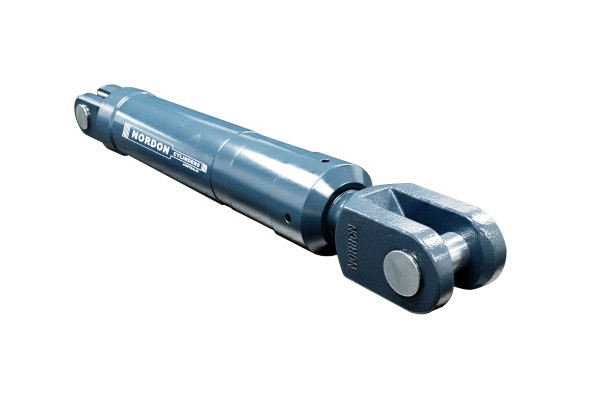

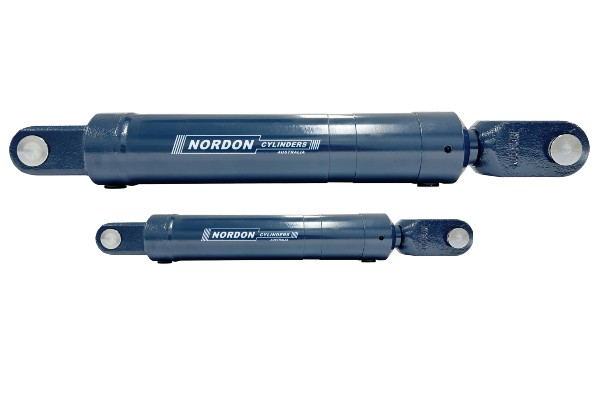

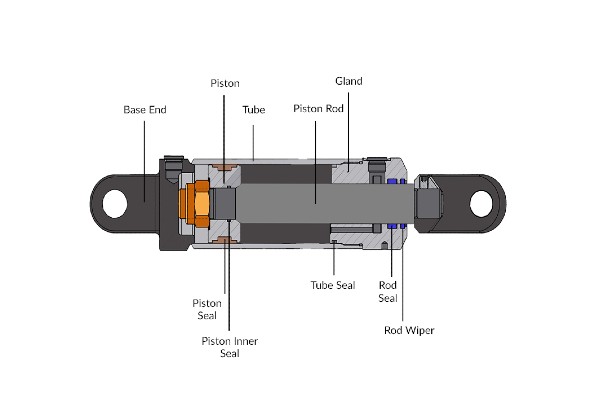

The Nordon NU Series Hydraulic Cylinder is designed for exceptional performance, durability, and versatility. Available in a wide range of standard options to suit various applications, these quality cylinders have been custom built to withstand Australia's harshest conditions.
Ideal for all of Australia's key critical industries, including mining, construction, oil and gas, transport, and agriculture.
Constructed from premium materials and equipped with world-leading Hallite seals these cylinders deliver reliable and consistent performance. They are built to excel in applications where both efficiency and durability are required.
Product Benefits
- Ideal for the industrial, construction, oil and gas, transport, and agriculture sector
- The perfect multi-purpose hydraulic cylinder
- Optimised A & B ports
- Superior quality Hallite Seals for durability
- 5-Year manufacturer's warranty
Product Dimensions & Ordering Information
| Bore Size | Part Number | Bore | Stroke | Rod Dia. | Closed Centre | Pin Dia / Length |
|---|---|---|---|---|---|---|
| 1.5" | NU15D02R07 | 1 1/2" | 2" | 0.75" | 235mm | 0.5"-50mm |
| 1.5" | NU15D04R07 | 1 1/2" | 4" | 0.75" | 286mm | 0.5"-50mm |
| 1.5" | NU15D06R07 | 1 1/2" | 6" | 0.75" | 336mm | 0.5"-50mm |
| 1.5" | NU15D08R07 | 1 1/2" | 8" | 0.75" | 387mm | 0.5"-50mm |
| 1.5" | NU15D10R07 | 1 1/2" | 10" | 0.75" | 438mm | 0.5"-50mm |
| 1.5" | NU15D12R07 | 1 1/2" | 12" | 0.75" | 489mm | 0.5"-50mm |
| 1.5" | NU15D16R07 | 1 1/2" | 16" | 0.75" | 590mm | 0.5"-50mm |
| 1.5" | NU15D18R07 | 1 1/2" | 18" | 0.75" | 641mm | 0.5"-50mm |
| 1.5" | NU15D20R07 | 1 1/2" | 20" | 0.75" | 692mm | 0.5"-50mm |
| 1.5" | NU15D24R07 | 1 1/2" | 24" | 0.75" | 794mm | 0.5"-50mm |
| Bore Size | Part Number | Bore | Stroke | Rod Dia. | Closed Centre | Pin Dia / Length |
|---|---|---|---|---|---|---|
| 2" | NU20D04R10 | 2" | 4" | 1" | 343mm | 0.75"-54mm |
| 2" | NU20D06R10 | 2" | 6" | 1" | 393mm | 0.75"-54mm |
| 2" | NU20D08R10 | 2" | 8" | 1" | 444mm | 0.75"-54mm |
| 2" | NU20D10R10 | 2" | 10" | 1" | 495mm | 0.75"-54mm |
| 2" | NU20D16R10 | 2" | 16" | 1" | 647mm | 0.75"-54mm |
| 2" | NU20D06R12 | 2" | 6" | 1.25" | 464mm | 0.75"-54mm |
| 2" | NU20D08R12 | 2" | 8" | 1.25" | 514mm | 0.75"-54mm |
| 2" | NU20D10R12 | 2" | 10" | 1.25" | 565mm | 0.75"-54mm |
| 2" | NU20D12R12 | 2" | 12" | 1.25" | 616mm | 0.75"-54mm |
| 2" | NU20D14R12 | 2" | 14" | 1.25" | 667mm | 0.75"-54mm |
| 2" | NU20D16R12 | 2" | 16" | 1.25" | 718mm | 0.75"-54mm |
| 2" | NU20D18R12 | 2" | 18" | 1.25" | 768mm | 0.75"-54mm |
| 2" | NU20D20R12 | 2" | 20" | 1.25" | 819mm | 0.75"-54mm |
| 2" | NU20D24R12 | 2" | 24" | 1.25" | 921mm | 0.75"-54mm |
| 2" | NU20D26R12 | 2" | 26" | 1.25" | 972mm | 0.75"-54mm |
| 2" | NU20D28R12 | 2" | 28" | 1.25" | 1022mm | 0.75"-54mm |
| 2" | NU20D30R12 | 2" | 30" | 1.25" | 1073mm | 0.75"-54mm |
| 2" | NU20D36R12 | 2" | 36" | 1.25" | 1226mm | 0.75"-54mm |
| 2" | NU20D42R12 | 2" | 42" | 1.25" | 1378mm | 0.75"-54mm |
| 2" | NU20D48R12 | 2" | 48" | 1.25" | 1530mm | 0.75"-54mm |
| Bore Size | Part Number | Bore | Stroke | Rod Dia. | Closed Centre | Pin Dia / Length |
|---|---|---|---|---|---|---|
| 2.5" | NU25D04R10 | 2.5" | 4" | 1" | 343mm | 0.75"-54mm |
| 2.5" | NU25D06R10 | 2.5" | 6" | 1" | 393mm | 0.75"-54mm |
| 2.5" | NU25D08R10 | 2.5" | 8" | 1" | 444mm | 0.75"-54mm |
| 2.5" | NU25D10R10 | 2.5" | 10" | 1" | 495mm | 0.75"-54mm |
| 2.5" | NU25D16R10 | 2.5" | 16" | 1" | 647mm | 0.75"-54mm |
| 2.5" | NU25D06R12 | 2.5" | 6" | 1.25" | 464mm | 0.75"-54mm |
| 2.5" | NU25D08R12 | 2.5" | 8" | 1.25" | 514mm | 0.75"-54mm |
| 2.5" | NU25D10R12 | 2.5" | 10" | 1.25" | 565mm | 0.75"-54mm |
| 2.5" | NU25D12R12 | 2.5" | 12" | 1.25" | 616mm | 0.75"-54mm |
| 2.5" | NU25D14R12 | 2.5" | 14" | 1.25" | 667mm | 0.75"-54mm |
| 2.5" | NU25D16R12 | 2.5" | 16" | 1.25" | 718mm | 0.75"-54mm |
| 2.5" | NU25D18R12 | 2.5" | 18" | 1.25" | 768mm | 0.75"-54mm |
| 2.5" | NU25D20R12 | 2.5" | 20" | 1.25" | 819mm | 0.75"-54mm |
| 2.5" | NU25D24R12 | 2.5" | 24" | 1.25" | 921mm | 0.75"-54mm |
| 2.5" | NU25D26R12 | 2.5" | 26" | 1.25" | 972mm | 0.75"-54mm |
| 2.5" | NU25D28R12 | 2.5" | 28" | 1.25" | 1022mm | 0.75"-54mm |
| 2.5" | NU25D30R12 | 2.5" | 30" | 1.25" | 1073mm | 0.75"-54mm |
| 2.5" | NU25D36R12 | 2.5" | 36" | 1.25" | 1226mm | 0.75"-54mm |
| 2.5" | NU25D42R12 | 2.5" | 42" | 1.25" | 1378mm | 0.75"-54mm |
| 2.5" | NU25D48R12 | 2.5" | 48" | 1.25" | 1530mm | 0.75"-54mm |
| Bore Size | Part Number | Bore | Stroke | Rod Dia. | Closed Centre | Pin Dia / Length |
|---|---|---|---|---|---|---|
| 3" | NU30D04R15 | 3" | 4" | 1.5" | 413mm | 1.0"-63mm |
| 3" | NU30D06R15 | 3" | 6" | 1.5" | 463mm | 1.0"-63mm |
| 3" | NU30D08R15 | 3" | 8" | 1.5" | 514mm | 1.0"-63mm |
| 3" | NU30D10R15 | 3" | 10" | 1.5" | 565mm | 1.0"-63mm |
| 3" | NU30D12R15 | 3" | 12" | 1.5" | 616mm | 1.0"-63mm |
| 3" | NU30D14R15 | 3" | 14" | 1.5" | 667mm | 1.0"-63mm |
| 3" | NU30D16R15 | 3" | 16" | 1.5" | 717mm | 1.0"-63mm |
| 3" | NU30D18R15 | 3" | 18" | 1.5" | 768mm | 1.0"-63mm |
| 3" | NU30D20R15 | 3" | 20" | 1.5" | 819mm | 1.0"-63mm |
| 3" | NU30D22R15 | 3" | 22" | 1.5" | 870mm | 1.0"-63mm |
| 3" | NU30D24R15 | 3" | 24" | 1.5" | 921mm | 1.0"-63mm |
| 3" | NU30D26R15 | 3" | 26" | 1.5" | 971mm | 1.0"-63mm |
| 3" | NU30D28R15 | 3" | 28" | 1.5" | 1022mm | 1.0"-63mm |
| 3" | NU30D30R15 | 3" | 30" | 1.5" | 1073mm | 1.0"-63mm |
| 3" | NU30D36R15 | 3" | 36" | 1.5" | 1225mm | 1.0"-63mm |
| 3" | NU30D42R15 | 3" | 42" | 1.5" | 1378mm | 1.0"-63mm |
| 3" | NU30D48R15 | 3" | 48" | 1.5" | 1530mm | 1.0"-63mm |
| Bore Size | Part Number | Bore | Stroke | Rod Dia. | Closed Centre | Pin Dia / Length |
|---|---|---|---|---|---|---|
| 4" | NU40D08R20 | 4" | 8" | 2" | 514mm | 1.0"-75mm |
| 4" | NU40D12R20 | 4" | 12" | 2" | 616mm | 1.0"-75mm |
| 4" | NU40D16R20 | 4" | 16" | 2" | 717mm | 1.0"-75mm |
| 4" | NU40D24R20 | 4" | 24" | 2" | 921mm | 1.0"-75mm |
| 4" | NU40D30R20 | 4" | 30" | 2" | 1073mm | 1.0"-75mm |
| 4" | NU40D36R20 | 4" | 36" | 2" | 1225mm | 1.0"-75mm |
